1000kg High Speed Mixer 450mm Impeller High Speed Paint Mixer

Allwin Machine & Equipment Co.,Ltd
Contact Now

1000kg High Speed Mixer 450mm Impeller High Speed Paint Mixer

  • 1
  • 2
  • 3

Brand Name : AllWin

Model Number : JF22 JF30

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : 2500USD-10000USD

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 30sets /month

Delivery Time : 20-30 working days

Packaging Details : Naked or Wooden boxes

Power : 22 kW

Explosion : EX proof

color : blue

Lifting travel : 1300mm

Diameter of impeller : 450mm

Weight : 1T

Size : 2300*800*2300mm

Centre distance : 1100

Lifting : Hydraulic lifting

Named : Dissolve machine

Contact Now

1000kg High Speed Mixer 450mm Impeller High Speed Paint Mixer

The series of JF high speed dispersing machine( mixer machine ) are suitable for paint, ink, coating, dyestuff, paper making, etc... in chemical industry. The mixers are used for wet dispersing and mixing liquid-solid material. On-grade speed adjustment by frequency converters, with hydraulic lifting, safety and steady work, better dispersing effect, easy maintenance.

Main characteristics:

1. Allwin’s proprietary technologies: Thress securities for vertical column with hydraulic lifting:No oil leakage, no ceiling-hitting and rotary 360°for machine frame.

2. 40Cr hard chrome-plated.

3. Converter built-in Electrical box, not explosion-proof far away from the scene, with explosion-proof motor and explosion-proof operation column

4. Color: White

5. Hydraulic lifting, safety and steady work.

6. Better dispersing effect and easy maintenance.

Main Advantage:

1. Safety and stability

2. No oil leakage,

3. Double impellers are more efficient.

4. Easily operation and low maintenance, easy maintenance.

Main parameter:

Parameter/model

JF22 JF30 JF45
Main motor:380V,50HZ kw 22/30/45
Diameter of impeller mm 450
Rotary speed R/min 0-1100
centre-to-centre distance mm 1100
Lifting travel mm 1300
Pump motor kw 0.75
Total height mm 2300
Rotary angle of main frame 360°

Overall dimension

A mm 2300
B(width) mm 900
L mm 935
H1 mm 2300
h1 mm 300

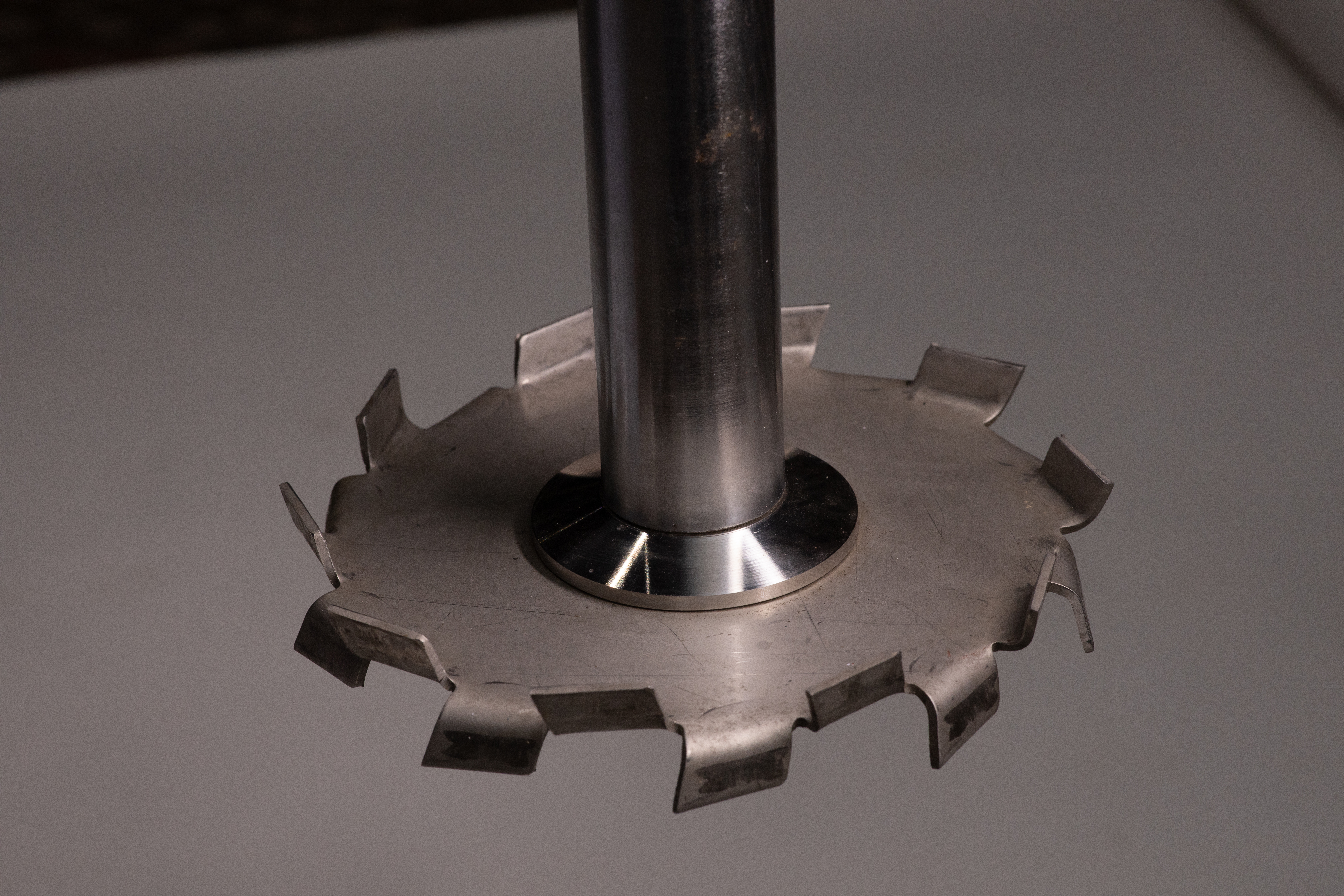

The Impeller or dics ( two kinds for different needs)

1000kg High Speed Mixer 450mm Impeller High Speed Paint Mixer

1000kg High Speed Mixer 450mm Impeller High Speed Paint Mixer

After sales service:

1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.

2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

FAQ:

Q1: Are you a trading company or manufacturer?

A1: We are the manufacturer.

Q2: Where is your company and factory located? How can I visit you?

A2: Our company is located in Tongxing industrial zone in Caijia Town, Beibei, Chognqing, China. Post code: 400709. It takes about 0.5 hours from Airport to our coampny by car. All our clients, from home or abroad, are warmly welcome to visit us!

Q3: Do you have own R&D team?

A3: Yes, we have 12 engineers, and our products could be customized for your requirements.

Q4: How about the quality?

A4: We have professional engineers and a strict QA& QC system, Our factory comply with the IS09001 standard strictly.

Q5: What is your after-sale service?

A5: we offer 100% guarantee on our product and agree 1:1 replace defective products. Firstly we offer the video instruction for maintenance for you ,if need ,we will arrange engineer for you.

Q6: How is the payment?

A6: Firstly paid the deposit, then paid the balanced before shipping.

Q7: How is the package and delivery?

A7: Normally are the wooden boxes, and FCL or LCL container for sea shipping.
