7.5kw-45kW Industrial Paint Mixer 1000kg Industrial Paint Disperser Machine

Product Categories
Allwin Machine & Equipment Co.,Ltd
Contact Now

7.5kw-45kW Industrial Paint Mixer 1000kg Industrial Paint Disperser Machine

Brand Name : AllWin

Model Number : JF45

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : 2500USD-8500USD

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 30sets /month

Delivery Time : 20-30 working days

Packaging Details : Naked or Wooden boxes

Power : 45kW

Explosion : EX proof

color : white or you need

Lifting travel : 1300mm

Diameter of impeller : 450mm

Weight : 1000kg

size : 2300*800*2300mm

Centre distance : 1100

Contact Now

7.5kw-45kW Industrial Paint Mixer 1000kg Industrial Paint Disperser Machine

Hydraulic lift 7.5 kw-45 kw Single Impeller High Efficiency Wet Dispersing High Speed Dispersing Machine

Main characteristics of Dispersing machine:

1. Allwin’s proprietary technologies: Thress securities for vertical column with hydraulic lifting:No oil leakage, no ceiling-hitting and rotary 360°for machine frame.

2. 40Cr hard chrome-plated.

3.Converter built-in Electrical box, not explosion-proof far away from the scene, with explosion-proof motor and explosion-proof operation column

4. Color:White

Main Advantage:

1. Safety and stability

2. No oil leakage,

3. Double impellers are more efficient.

4. Easily operation and low maintenance.

Main parameter:

Parameter/model

 JF45
Main motor:380V,50HZ kw 45
Diameter of impeller mm 450
Rotary speed R/min 0-1100
centre-to-centre distance mm 1100
Lifting travel mm 1300
Pump motor kw 0.75
Total height mm 2300
Rotary angle of main frame 360°

Overall dimension

 A mm 2300
B(width) mm 900
L mm 935
H1 mm 2300
h1 mm 300

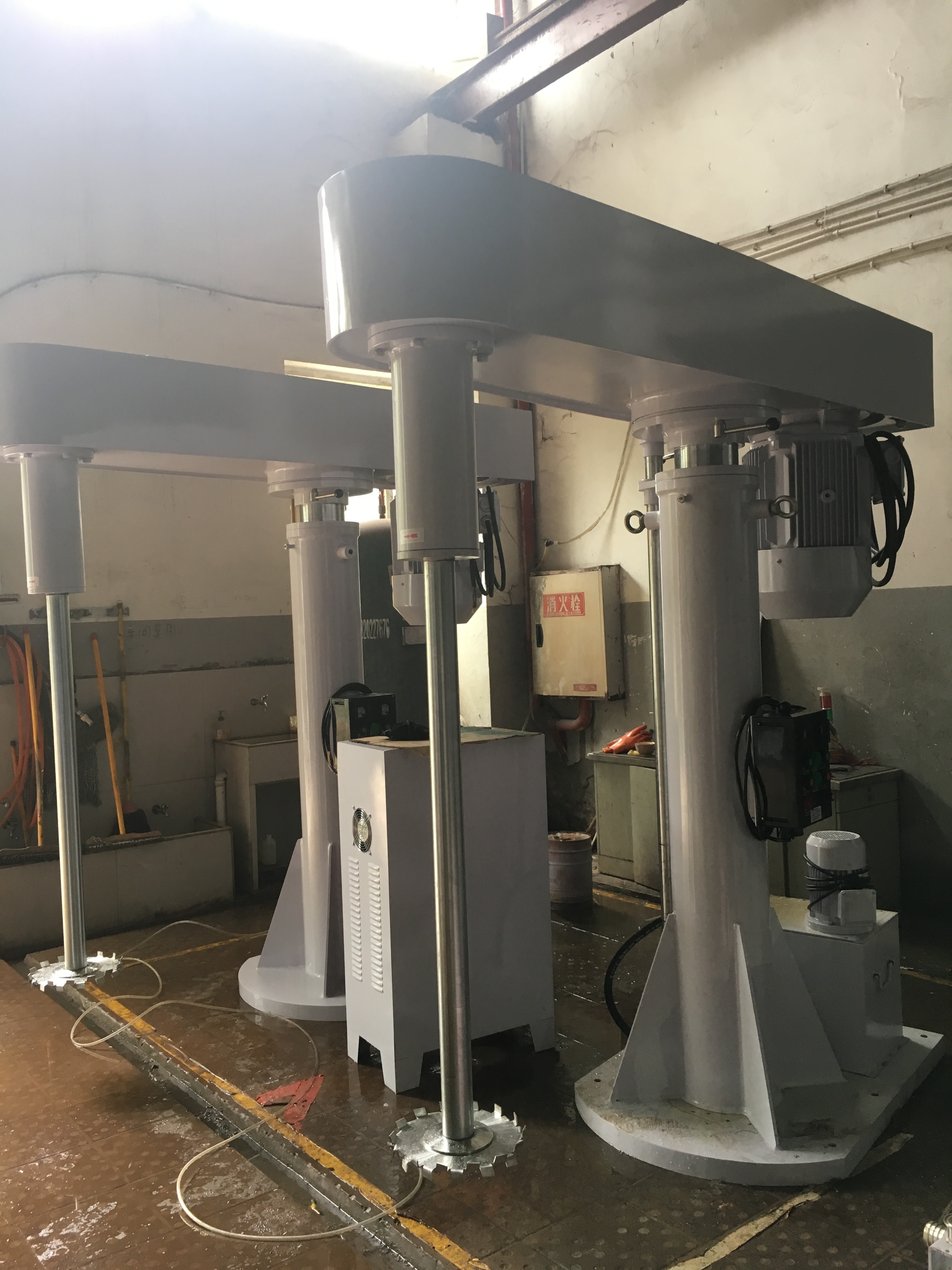

Production show

7.5kw-45kW Industrial Paint Mixer 1000kg Industrial Paint Disperser Machine

7.5kw-45kW Industrial Paint Mixer 1000kg Industrial Paint Disperser Machine

7.5kw-45kW Industrial Paint Mixer 1000kg Industrial Paint Disperser Machine

If need more detailed information, please contact me.
