75KW Wet Grinding Mill SP250 Paint Milling Machine

Product Categories
Allwin Machine & Equipment Co.,Ltd
Contact Now

75KW Wet Grinding Mill SP250 Paint Milling Machine

  • 1
  • 2

Brand Name : ALLWIN

Model Number : SP250

Place of Origin : Chongqing,China

MOQ : 1 unit

Price : USD 48000---65000 Per Unit

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 30 Units per Month

Delivery Time : 20-30 Work Days

Packaging Details : Wooden Boxes

Certification : ISO9001

Type : Grinding and Dispersing Equipment

Inner Chamber Matrial : 9Cr18Mo, SUS 304 Stainless Steel

Outter Chamber Material : SUS 304 Stainless Steel

Cavity Volume : 250L

Motor Energy : 75KW

Grinding System : Disks

Ex-proof Performance : Explosion-proof, Non Explosion-proof

Way of Discharging : Static

Warranty : 1 Year, Excluding Wearing Parts

Application : Chemicals Processing, Food Processing, pesticide, Medicine Processing, Paint, Coating, Inks

Contact Now

75 KW Non Explosion-proof Wet Grinding 250L Horizontal Bead Mill Machine



1.Display of Horizontal Bead Mill Machine

75KW Wet Grinding Mill SP250 Paint Milling Machine
75KW Wet Grinding Mill SP250 Paint Milling Machine


2. 100L Bead Mill Machine Technical Data

No Main ParametersSP250Note
1

Motor power
(kW)

75 kW Ex-proof/non ex-proof available
2

Effective volume of

grinding chamber (L)

250Lvolume can be suggested according to different grinding materials and usages
3

Water pressure
(MPa)

0.3
4Cooling water consumption (L/min)2.5 -3m3/hAdvision: Users offer the Cooling water less 10°C
5

Dimensions:L*W*H
(mm)

2300*1000*2250
6

Weight
(kg)

---Different weight as for different chamber materials
3. Configuration Instructions of 250L Horizontal Bead Mill
No.


Main parts

SUPER series horizontal sand millNotes
1Material of External ChamberSUS 304 stainless steel
2Material of Internal grinding chamber9Cr18Mo Alloy steel,Silicon Carbide Ceramics, SUS 304 Stainless Steel Available
3Dispersing shaft


40Cr with hard chromium plating

Brand: NSK
4

Dispersing disk
(agitator disk)

SUS 304 stainless steel , 9Cr steel, PUDifferent shapes and materials for choice
5Feeding and discharging end covers on the cylinderSUS 304 stainless steel
6Static discharge screen ringWire Wound screen ring with 304.Gaps: 0.5mm.Gaps can be calculated according to customer's requirements
7Mechanical seal

ALLWIN patent technology with anti-theft system
8

Feeding pump

2" ARO diaphragm pump;

Brand: Ingersoll Rand
4. Display of manufacturing Equipments
75KW Wet Grinding Mill SP250 Paint Milling Machine

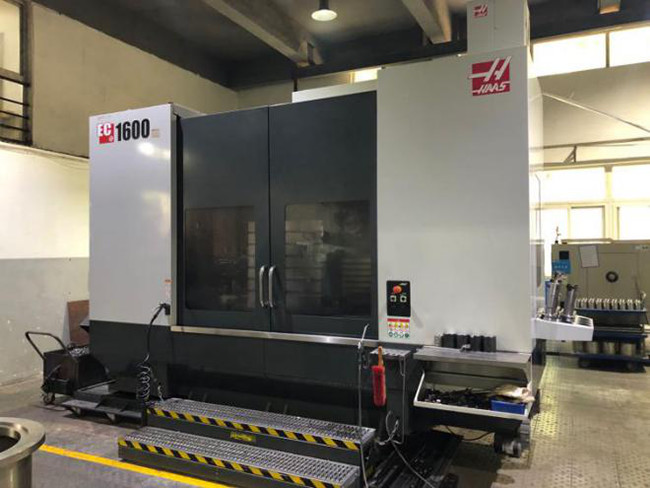

Imported form America, HAAS 1600 Series, valued 2.6 million RMB, used to process key parts to ensure small runout of end face, steady operation.
75KW Wet Grinding Mill SP250 Paint Milling Machine
Brand TAIWAN JIUYUAN, precision CNC.
5. Key parts and spares
75KW Wet Grinding Mill SP250 Paint Milling Machine
Disks with different shapes and materials
75KW Wet Grinding Mill SP250 Paint Milling Machine
Double mechanical seal: patent technology , made by ALLWIN
6. Culture of ALLWIN company
❶Company Target: to be a better service-provider and manufacturer in grinding and dispersing.
❷Product Mind: to produce great machines for great enterprises which are facing future, starving to development.

❸Service Aim: to creat values for user-centered customers.

❹Cooperation Principle: to solve the problem with mutual benefits.



7. Advantages of horizontal bead mill machine

A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.
B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.
C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.
D. Offering customized services and suggestions when choosing sand mill machines according to stocks, finness, applictions.
E. Great pre-sale, sale, after-sale service and reasonable suggestions for usage.
F.Master key technology of grinding and dispersing, ensured higher efficiency, lower temperature, less person and greater finness than other competitors.
