Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

Product Categories
Allwin Machine & Equipment Co.,Ltd
Contact Now

Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

Brand Name : ALLWIN

Model Number : HZ PLUS

Place of Origin : Chognqing , China

MOQ : 1 Unit

Price : USD 28000---65000 Per Unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20-30 Units per Month

Delivery Time : 25-30 work days

Packaging Details : Wooden Cases

Certification : ISO9001

Type : Grinding and Dispersing Sand Mill Machine

Chamber Volume : 30 L,50 L , 100 L , 250 L（different volumes available)）

Motor Power : 30 KW,37 KW, 55 KW, 75 KW, 90 KW( according to different volume)

Explosion Performance : Non Explosion, Explosion Available

Internal Chamber Material : 9Cro18Mo Alloy Steel, Silicon Carbide Ceramics, SUS 304 Stainless Steel Available

External Chamber Merialat : SUS 304 Stainless Steel

Warranty : 1 Year for other Parts Except for Wearing Parts

Usage : Coating, painting, inks, pesticides, food, food additives, cosmetics, mining

Contact Now

Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

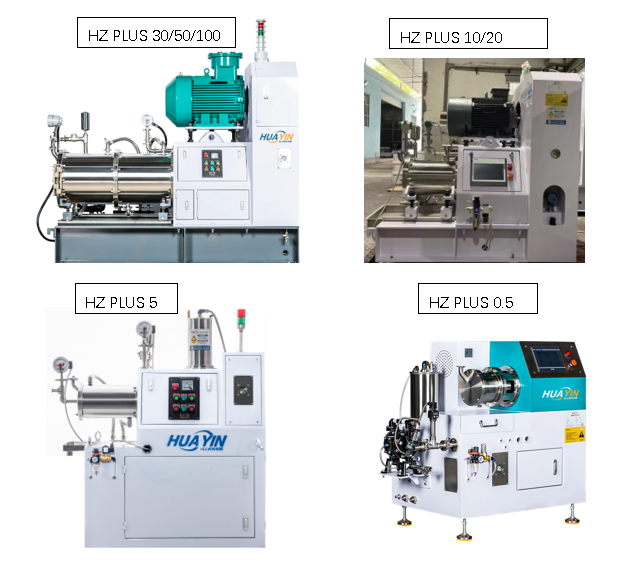

HZ PLUS model is our hotsale bead mills in nano grinding industries and customers. According to finer requirement among various industries and customer, nanogrinding seems to become a normal requirement.This model composed discs and pins into a whole grinding structure, with a dynaic discharging seperating screen ring, help to utilize smaller grinding beads, screen ring gaps, enlarged surface area to make discharge smoother, and not blocking. More and more customers are willing to purchase this model for potential advanced requirement.

Also other advantages are obvious:

1. lower pressure of mechanical seal, longer work stabliity, lower failure rate of mechanical seal

2. finer fineness of discharging slurry when using smaller grinding beads(the minized grinding bead size can be 0.1mm)

3.dynamic and enlarged surface area of screen ring ensured higher efficiency and no blocking.

Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

Basic data for reference

No.

Main Parameters

 HZ PLUS model Notes
1

Motor Power

(kW)

5.5KW,11KW, 22 kW ,30 kW, 37 KW, 55 KW,75 KW, 90 KW available
2

Effective volume of

grinding chamber (L)

 0.5L,1L,2L,5L,10L,20L,30 L, 50 L, 100 L, 250 L
3

Water pressure

(MPa)

 0.3 Mpa
4 Cooling water consumption (L/min) 0.5-6m3/h Advise offer the Cooling water less 10°C
5

Explosion Performance

 Explosion-proof, Non explosion-proof available
6

Operation control

 PLC or manual push column

Configuration instructions

No.

Main parts

 horizontal sand mill machine Notes
1 Material of External Chamber SUS 304 stainless steel
2 Material of Inner grinding chamber 9Cr18Mo Alloy steel,Silicon Carbide Ceramics, SUS 304 Stainless Steel Available
3 Dispersing shaft

40Cr with hard chromium plating
4

Dispersing disk

(agitator disk)

 SUS 304 stainless steel , 9Cr steel, PU
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 discharge screen ring Wire Wound screen ring with 304.Gaps: 0.1-2.5mm. Gaps can be calculated according to customer's requirements
7 Mechanical seal

intelligent double mechanical

seal with mandatory

lubricating-cooling system
8 Feeding pump

1”, 1.5", 2" ARO diaphragm pump;

 Brand: Ingersoll Rand

Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

1. Display of processing machines in factory

Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

Shaft storage ensures non-deformation of metal stress

Customized Nano Grinding Horizontal 50L Sand Mill Machine 30KW Pigment Ink Production Machine

Silicon carbide ceramics internal chamber, while other materials also availble.

5. Advantages of horizontal sead mill machine
A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.
B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.
C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.
D. Offering customized services and suggestions when choosing sand mill machines according to stocks, finness, applictions.
E. Great pre-sale, selling, after-sale service and reasonable suggestions for usage.
F.Master key technology of grinding and dispersing, ensured higher efficiency, lower temperature, less person and greater finness than other competitors.
