SUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill Machine

Brand Name : ALLWIN

Model Number : SP100

Place of Origin : Chognqing , China

MOQ : 1 Unit

Price : USD 35000---58000 Per Unit

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 20-30 Units per Month

Delivery Time : 25-30 work days

Packaging Details : Wooden Cases

Certification : ISO9001

Product Name : Sand Mill ,Bead Mill, Grinding Mill

Chamber Volume : 100 L

Motor Power : 55KW

Explosion Performance : Explosion-proof

Internal Chamber Material : 9Cro18Mo Alloy Steel, Silicon Carbide Ceramics, SUS 304 Stainless Steel Available

External Chamber Merialat : SUS 304 Stainless Steel

Warranty : 1 Year for other Parts Except for Wearing Parts

Usage : Coating, painting, inks, pesticides, food, addictive

Contact Now

SUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill Machine

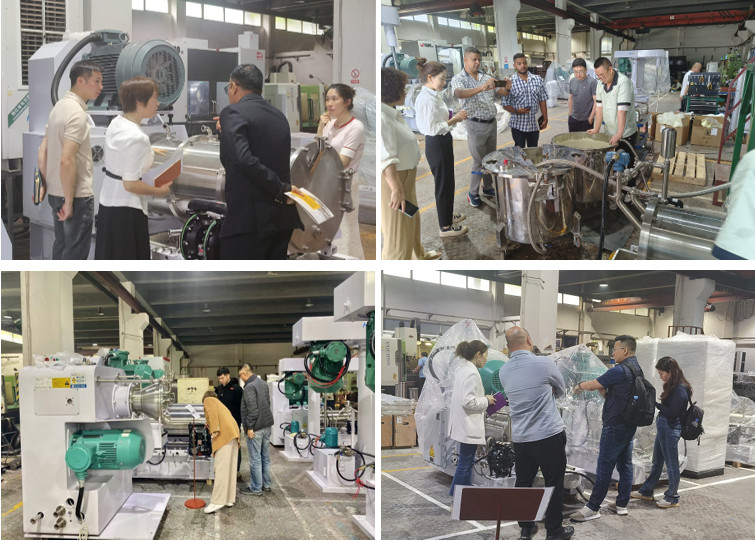

Allwin has much experience in horizontal bead mills for over 30 years in different industries like paint, ink, dye, pigment, ceramics, battery materials, food addictives,pharmacuetics, etc. Our machines are popular among our customers , in exhibitions, in visitions, etc.

SUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill MachineSUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill MachineSUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill Machine

1.Technical data of 100 L wet bead mill

No.

Main Parameters

 SP100 Notes
1 Non Explosion-proof motor (kW) 55KW
2

Effective volume of

grinding chamber (L)

 100L
3

Water pressure

(MPa)

 0.3 Mpa
4 Cooling water consumption (L/min) 2.5 -3m3/h Advise offer the Cooling water less 10°C
5

Dimensions:

L*W*H (mm)

 1950*900*1900 mm
6

Weight

(kg)

 2000 Kg
2.Configuration instructions

No.

Main parts

 SP100 Explosion-proof Wet Bead Mill Notes
1 Material of External Chamber SUS 304 stainless steel
2 Material of Inner grinding chamber 9Cr18Mo Alloy steel, SIC sillicon carbide ceramics
3

Dispersing shaft

 40Cr with hard chromium plating Brand: NSK
4

Dispersing disk

(agitator disk)

 SUS 304 stainless steel , PU, 9Cr available
5 Feeding and discharging end covers on the cylinder SUS 304 stainless steel
6 Static discharge screen ring Wire Wound screen ring with 304.Gaps: 0.5mm. Gaps can be calculated according to customer's requirements
7 Mechanical seal

Intelligent double mechanical

seal with mandatory

lubricating-cooling system
8

Feeding pump

 1.5” ARO diaphragm pump; Brand: Ingersoll Rand
9 Appliance configuration Non explosion-proof machine, suitable for water base materials, motor 30kW or 37 KW. Non explosion-proof parts: operation column,electrical appliance boxes;electric contact pressure gauge, temperature,solenoid valves with electrical contacts., Control system (button type)
10 Fasteners and connecting parts

Stainless steel clamp-type

connecting parts

 Quick and convenient
3. Advantages Of Bead Mill Machine
A. Long History in grinding and dispering. Founder of Allwin,Mr. Yongqi Wang, is the fist Chinese designer, and over 27 years innovation in technical, the grinding machine has gained famous brand and great reputation in China.
B. Long terms cooperation with great and famous enterprises. Such as Akzo Nobel, which had purchased over 20 units sinced 2004. Both high quality and great service can help to contribute cooperation.
C. 11 Certificates of patent help to ensure equipment application with lower temperature, higher outputs, greater finness.

4. Display of 100L Wet Bead Mill

SUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill Machine

SUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill Machine

2. Key Parts of 100 L Horizontal Bead Mill

SUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill Machine

Allwin Patent Technology : Mechanical Seal, adopted anti-stealing technology

3. Display of Dispersing System

SUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill Machine

SUS304 Bead Mill For Paint CE 55KW Pin Type Grinding sand Mill Machine

Dispersing disks can be available according to different grinding materials and industries.
