100L silicon carbide ceramics Wet Sand Grinding Mill especially For White Color Paint

Name: 100L silicon carbide ceramics Wet Sand Grinding Mill especially For White Color Paint
Brand: AllWin
Price: 26000 USD

Quality 100L silicon carbide ceramics Wet Sand Grinding Mill especially For White Color Paint for sale

Brand Name : AllWin

Model Number : SP50

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : USD26000--USD60000/set

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 30sets /month

Delivery Time : 20-30 working days

Packaging Details : wooden boxes

Materials : silicon carbide ceramics, 9Cr18Mo alloy steel

Volume : 30L, 50 L, 100L

Power : 30kW, 37KW, 55KW

Fineness : 5-10um

EX-proof performance : explosion-proof or non-explosion proof

Application : paint processing, especially for white color

Color : White, customized, as request

Temperature control : 8-15℃ lower than normal material

Maintanence cost : lower than other chamber material, because the ceramics has better wear resistance

Contact Now

30L 50L 100L Non Ex-Proof Water Base White Color Paint Horizontal Grinding Sand Mill With Ceramics Inner Chamber

Water based paint is relatively green compared with oil based paint, and the explosion performance can be lowered to choose non ex-proof motor when grinding. While the white color has different requirement. Some require the color is pure white. Most steel material can change the white color with grey after grinding many times, because of the metal contamination. Ceramics materials is valid to avoid metal contamination, to ensure the white color unchangable. Meanwhile the temperature control is better, it's obviously different especially for the seasons, places and countries with high temperature. In addition, the assembly structure owns two patent technologies, ensuring ceramics inner chamber not to be crashed. At last, ceramics has greater wear resistance, to make sure the longer work life of grinding chamber.

Technical specification:

”super” SP series of horizontal grinding sand mill
Type	Working Volume (L)	Power (kW)	Grinding Beads (mm)	Throughput (kg/h)
SP30	30	30	0.3-3.0	70-700
SP50	50	37	0.3-3.0	100-1000
SP100	100	55	0.3-3.0	300-3000

Configuration instructions information of bead mill machines

No	Main parts	SP series	Notes
1	External vessel	SUS 304 stainless steel
2	Inner grinding vessel	silicon carbide ceramics	different mateials are also optional
3	Material of Dispersing shaft	40Cr with hard chromium plating
4	Material of Dispersing disk (agitator disk)	wearable steel,SUS 304 stainless steel
5	end covers	SUS 304 stainless steel
6	discharge manner and material	Static discharge, stainless steel
7	Mechanical seal	Intelligent double mechanical seal
8	Feeding pump	G1",G1.5” ARO diaphragm pump;	Ingersoll Rand
9	Dispersing structure	pure disk type, disk combined with turbine,or disk combined with turbine and pins.	we can recommend which structure is more suitable.
10	Alarming system	applied for each machines or for your choice

Ceramics inner chamber

100L silicon carbide ceramics Wet Sand Grinding Mill especially For White Color Paint

Assembly structure
100L silicon carbide ceramics Wet Sand Grinding Mill especially For White Color Paint

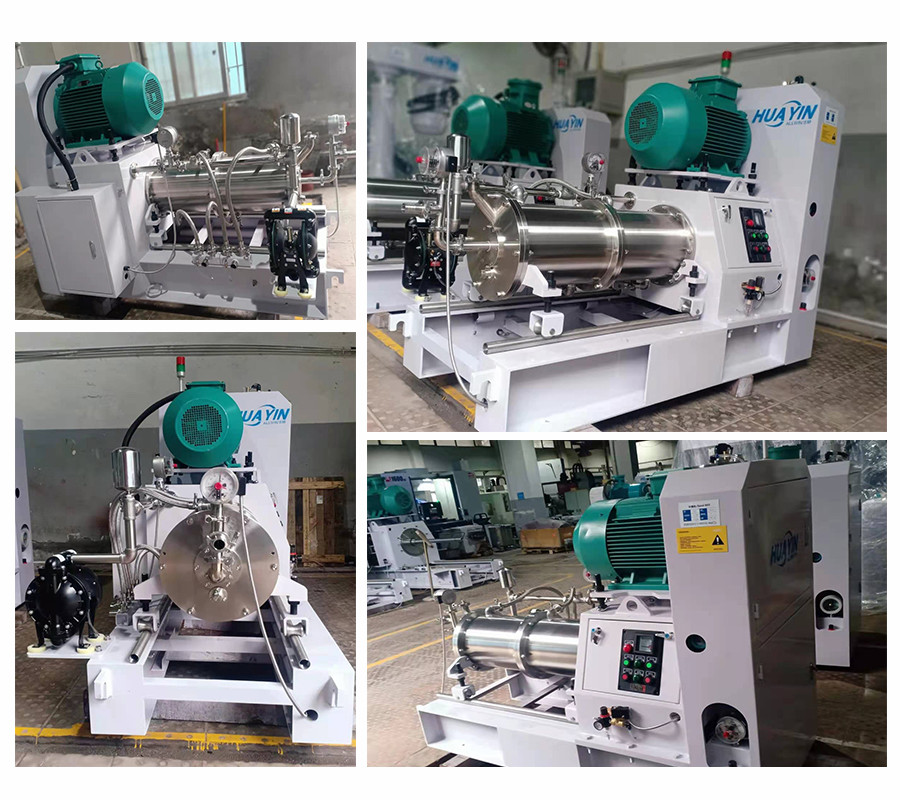

Display of customer's workshop

If need more detailed information, please don't hesitate contact us, Also Warmly welcome to visit us.
