50 L 37 KW Ex-Proof Paint Coat Color Paste High-End Horizontal Ceramics Grinding Sand Mill
Grinding sand mills are one crucial part of paint, coat, color paste procesing. And the grinding sand mills decide the whole production capacity, the quality of paint, coat and color paste. With great requirement of safety, most companies are limited to purchase machines with explosion performance. While Allwin's grinding sand mill can be complianced with safety specifications.
This SP 50 grinding sand mill installed with ex-proof motor, choosing ceramics grinding vessel, is very popular in our customers, due to both its high efficiency, low temperature, great fineness, and energy saving. Meanwhile the ceramics grinding sand mills are very friendly to white color of paint, coat and color paste. The whiteness will not change even though the mills are used a very long period.
Technical specification:
| No | main parameters | SP50 | Note |
| 1 | Explosion-proof motor kW | 37kW | non ex-proof is optional |
| 2 | Effective volume of grinding chamber (L) | 50 | |
| 3 | Water pressure (MPa) | 0.3 | |
| 4 | Cooling water consumption (L/min) | 2.5 -3m3/h | Advise offer the Cooling water less 10°C |
| 5 | Dimensions:L*W*H (mm) | 1940*900*2000 | |
| 6 | Weight (kg) | 1800 | |
Configuration instructions information of bead mill machines
| No | Main parts | SP series | Notes |
| 1 | External vessel | SUS 304 stainless steel | |
| 2 | Inner grinding vessel | silicon carbide ceramics | different mateials are also optional |
| 3 | Material of Dispersing shaft | 40Cr with hard chromium plating | |
| 4 | Material of Dispersing disk (agitator disk) | wearable steel,SUS 304 stainless steel | |
| 5 | end covers | SUS 304 stainless steel | |
| 6 | discharge manner and material | Static discharge, stainless steel | |
| 7 | Mechanical seal | Intelligent double mechanical seal | |
| 8 | Feeding pump | G1",G1.5” ARO diaphragm pump; | Ingersoll Rand |
| 9 | Dispersing structure | pure disk type, disk combined with turbine,or disk combined with turbine and pins. | we can recommend which structure is more suitable. |
| 10 | Alarming system | applied for each machines or for your choice |
|
Ceramics inner chamber
Assembly structure
other spare parts:
The After sales service:
1. Video instructions for installation and commissioning, if need, we will arrange engineer to your factory.
2. 12-24H feedback any customers questions, firstly offer the video help you solving, if need arrange maintenance engineer for you.

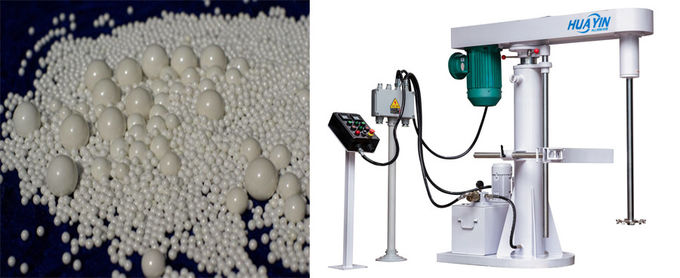

Related products: agitator disperser and zirconia bead are related to grinding and dispersing processing, and Allwin can also offer these parts. the agitator disperser varys from 11kw to75kw, zirconia bead size can be in range of 0.3-3.0mm.
Note:
1.We will recommend the suitable bead mills according to your information and demand, such as industry, fineness, temperature, viscosity,production capacity etcs.
2.The Materials of inner chamber and dispersing disks can be choosen according to your different grinding materials and industries.
3.The control system will match with different demands, such as PLC or traditional button type.
If need more detailed information, please don't hesitate contact us, Also Warmly welcome to visit us.
